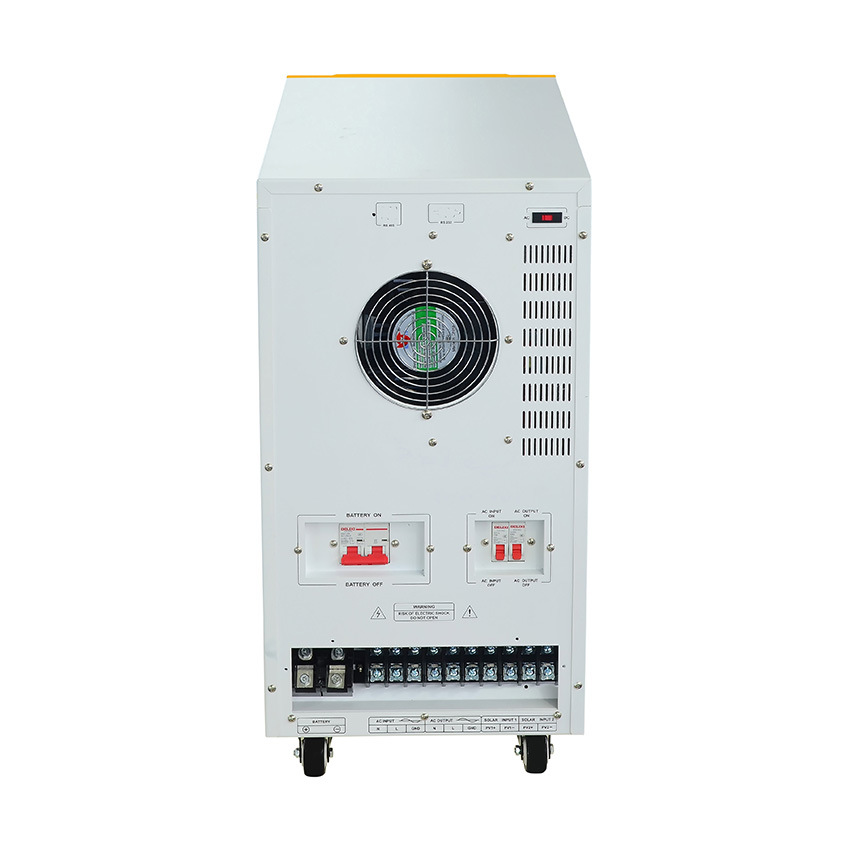

MPPT Solar Power Inverter Charger 8000-12000 Watt 48/96/192 Volt, off-Grid/Hybrid Solar Energy System

  • CE

  • 3 Year

  • DC/AC Inverters

  • Single

  • 8kw-12kw

  • OEM

Welcome to YUANHE Import & Export  One-Stop Solution of New Energy

Solar LED Light / Energy Storage / Power Station

* Solar LED Light
* Solar Panel (Glass / Folding)
* Portable Energy Storage / Power Station
* Household Solar Energy System

Solar System Inverter Feature

1  Solar power inverter charger built-in PWM or MPPT controller optional;

2  Pure sine wave output;

3  High efficiency toroidal transformer lower loss ;

4  Intelligent LCD integration display;

5  AC charge current 0-20A adjustable; battery capacity configuration more flexible;

6  Three types working modes adjustable:AC first, DC first, energy-saving mode;

7  Frequency adaptive function, adapt to different grid environments;

8  Added fault code query function,facilitate user to monitor the operation state in real time;

9  Supports diesel or gasoline generator, adapt any tough electricity situation;

10  RS485 communication port/APP optional.

Solar System Inverter Specification

Model YHWDT 80248/96/192
Rated Power 8000 watt 10000 watt 12000 watt
Peak Power(20ms) 24000VA 30000VA 36000VA
Start Motor 5HP 7HP 7HP
Battery Voltage 48/96/192VDC 48/96V/192VDC 96/192VDC
Size(L*W*Hmm) 540x350x695
Packing Size(L*W*Hmm) 600*410*810
N.W.(kg) 66 70 77
G.W.(kg) 77 81 88
Installation Method Tower
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) /  185VAC~255VAC(220VAC) /
195VAC~265VAC(230VAC) /  205VAC~275VAC( 240VAC) (8KW~40KW)
AC Input Frequency Range 45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
Max AC charging current 0A~40A(Depending on the model,The maximum charging power is 1/4 of the rated power)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2%  / 120VAC±2%  / 220VAC±2%  / 230VAC±2%  / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
Battery Type
VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
Charging Mode PWM or MPPT
charging current PWM:(48V:120A;96V:50A/100A;192V/384V:50A /  MPPT:(48V:100A/200A;96V:50A/100A;192V/384V:50A)
PV Input Voltage Range PWM:  60V-88V(48V system); 120V-176V(96V system);240V-352V(192V system)
MPPT:   60V-120V(48V system); 120V-240V(96V system);240V-360V(192V system)
Max PV Input Voltage(Voc)
(At the lowest temperature)
PWM: 100V(48V system); 200V(96V system);400V(192V system)
MPPT: 150V(48V system); 300V(96V system);450V(192V system)
PV Array Maximum Power 48V system: 6720W(PWM 120A)/5.6KW&11.2KW(MPPT 100A/200A);
96V system:  5.6KW(50A)/11.2KW(100A);192V system: 11.2KW(50A)
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10ºC~40ºC
Storage temperature -15ºC~60ºC
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice
