| Availability: | |
|---|---|
| Quantity: | |
Customized
PC
CE, RoHS
| TECHNICAL DATA | |||||||||

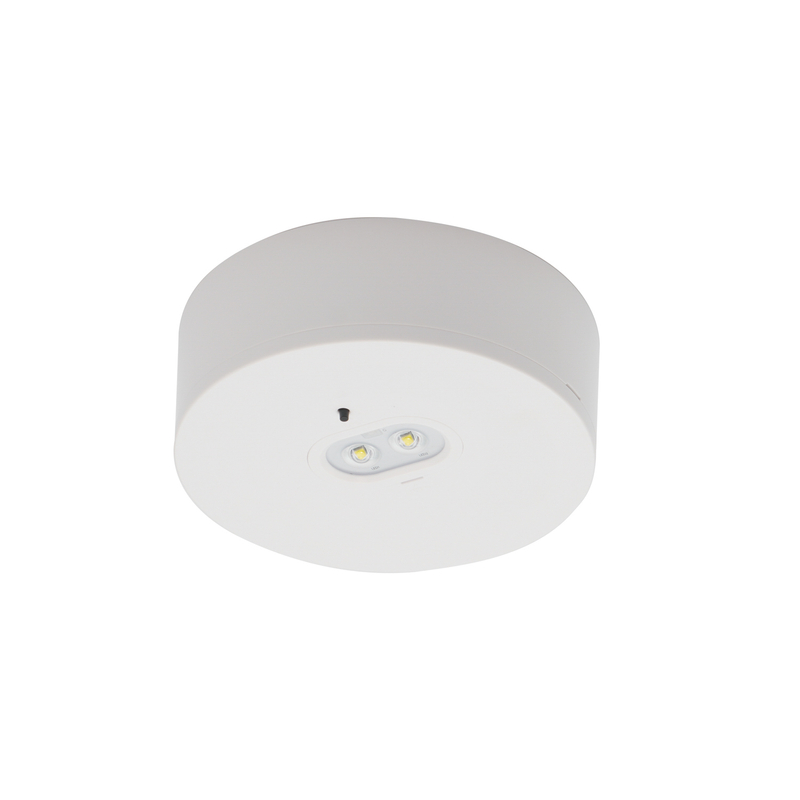

| Name | : | LED Rechargeable Emergency DownLight/Spot light | |||||||
| Model | : | WM-134/1006E1 | |||||||

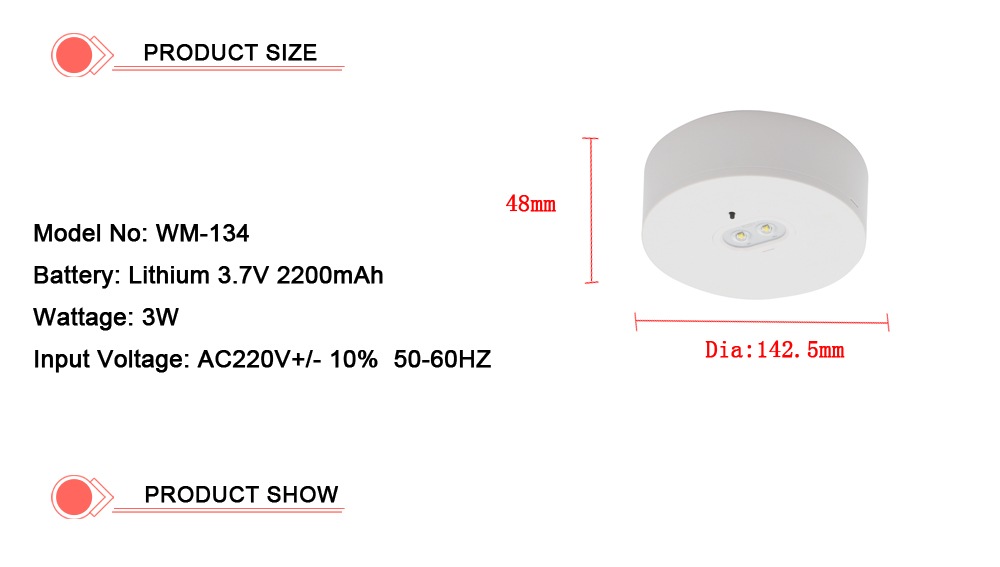

| Size of Body(mm) | : | Ø142.5*48mm | |||||||
| Hole Cut out(flush) | : | above 120mm,below 134mm | |||||||
| Mode of Operation | : | Non-Maintained | |||||||
| Input voltage | : | AC 240V ±10% 50/60Hz | |||||||
| Charging Time | : | 24 Hours | |||||||
| Emergency Time | : | 2.5 hours | |||||||
| Emergency brightness | : | 300lm | |||||||
| Battery | : | Lithium 3.7V 2200mAh | |||||||
| Test Facility | : | Manual test/ Self test | |||||||
| Material | : | PC | |||||||
| IP Rating | : | IP 20 | |||||||
| Installation | : | (1)Recessed into roof (2)Surface of wall | |||||||
| Warranty | : | 2 years | |||||||
| Feature | : | Over charge and deep discharge protection | |||||||
| Power Charging Indicator | |||||||||
| Certification | : | CE | |||||||
| TECHNICAL DATA | |||||||||
| Name | : | LED Rechargeable Emergency DownLight/Spot light | |||||||
| Model | : | WM-134/1006E1 | |||||||
| Size of Body(mm) | : | Ø142.5*48mm | |||||||
| Hole Cut out(flush) | : | above 120mm,below 134mm | |||||||
| Mode of Operation | : | Non-Maintained | |||||||
| Input voltage | : | AC 240V ±10% 50/60Hz | |||||||
| Charging Time | : | 24 Hours | |||||||
| Emergency Time | : | 2.5 hours | |||||||
| Emergency brightness | : | 300lm | |||||||
| Battery | : | Lithium 3.7V 2200mAh | |||||||
| Test Facility | : | Manual test/ Self test | |||||||
| Material | : | PC | |||||||
| IP Rating | : | IP 20 | |||||||
| Installation | : | (1)Recessed into roof (2)Surface of wall | |||||||
| Warranty | : | 2 years | |||||||
| Feature | : | Over charge and deep discharge protection | |||||||
| Power Charging Indicator | |||||||||
| Certification | : | CE | |||||||
